Kodak DC4800 ICC Profile

REFERENCE R1200008 Kodak Q60 Target (sRGB)

DC4800 Original	Profiled from DC4800 to sRGB

Difference (original)	Difference (profiled)

LEGEND:

• CIE Chromaticity Diagram: The chromaticity diagram at the top of the page shows the gamut covered by the camera. A larger triangle indicates that the camera can capture a wider range of colors while a smaller triangle indicates that the camera can capture a narrower range. The entire colored arc shown is a representation of the color range visible to the human eye.

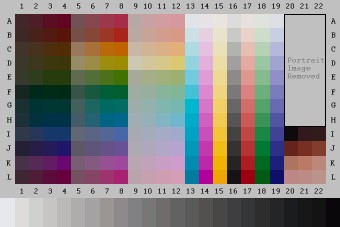

• Reference: The top Q60 reference chart is based on Kodak data for the chart shown, and is what a perfect rendition of the chart should look like on an sRGB system/monitor. While sRGB will not be 100% correct on all monitors, it should be accurate enough for visual inspection through most web browsers.

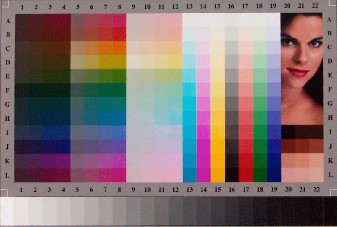

• Original: The original Q60 target is how the camera captured the image. This image has only been resized and no other corrections made. Compare this image with the reference above to judge how close the camera's original capture came to reproducing accurate color. Consider this image the "before" image.

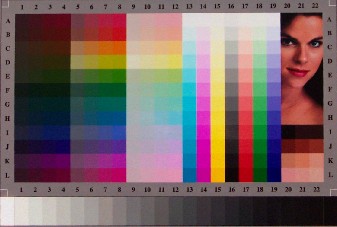

• Profiled to sRGB: The profiled image has been profiled into the sRGB color space by using the camera profile. Compare this image with the reference above to judge how close the profile comes to reproducing accurate color. Consider this image the "after" image.

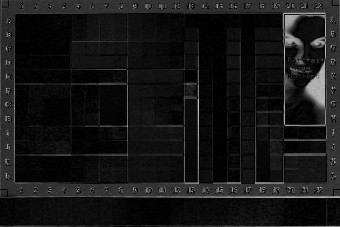

• Difference (original): This is the difference between the original image captured by the camera and the reference data for the target. This image represents the error that results from simply displaying/printing the original image straight from the camera. The brighter the color blocks, the more error exists, so darker is better (black is zero error). Ignore the very thin bright lines between color blocks as these are just registration (alignment) errors when comparing the original to the reference. Also, ignore the portrait image as it is not included in the reference.

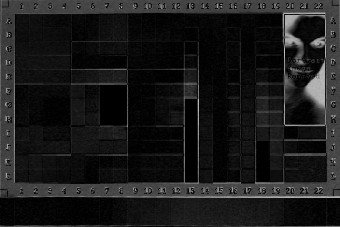

• Difference (profiled): This is the difference between the profiled image and the reference data for the target. This image represents the error that results when the ICC profile is used with the original image. The brighter the color blocks, the more error exists, so darker is better (black is zero error). Ignore the very thin bright lines between color blocks as these are just registration (alignment) errors when comparing the original to the reference. Also, ignore the portrait image as it is not included in the reference.

NOTES REGARDING THIS ICC PROFILE:

• This profile was designed for use with JPEG/TIFF images with the camera set to factory defaults (including default "saturated" color).
• This profile will not work with raw images (if the camera provides a raw capture mode).
• The profile was designed to describe the overall color response of the camera such that the profile can be used with images under any lighting conditions.
• Since this profile describes overall color response, it is not indended to reduce color error to zero under all conditions; however, it will provide much more accurate color than using any generic color space (such as sRGB, Color Match, NTSC, etc) or using no color space at all.
• Since the profile is designed for use on all images under any lighting conditions, it cannot correct for underexposure, overexposure, or poor white balance.
• This is a standard ICC profile. This profile may be used in Qimage or any ICC aware application or platform.

All Images Copyright Steve's Digicams

Original	Profiled from DC4800 to sRGB
